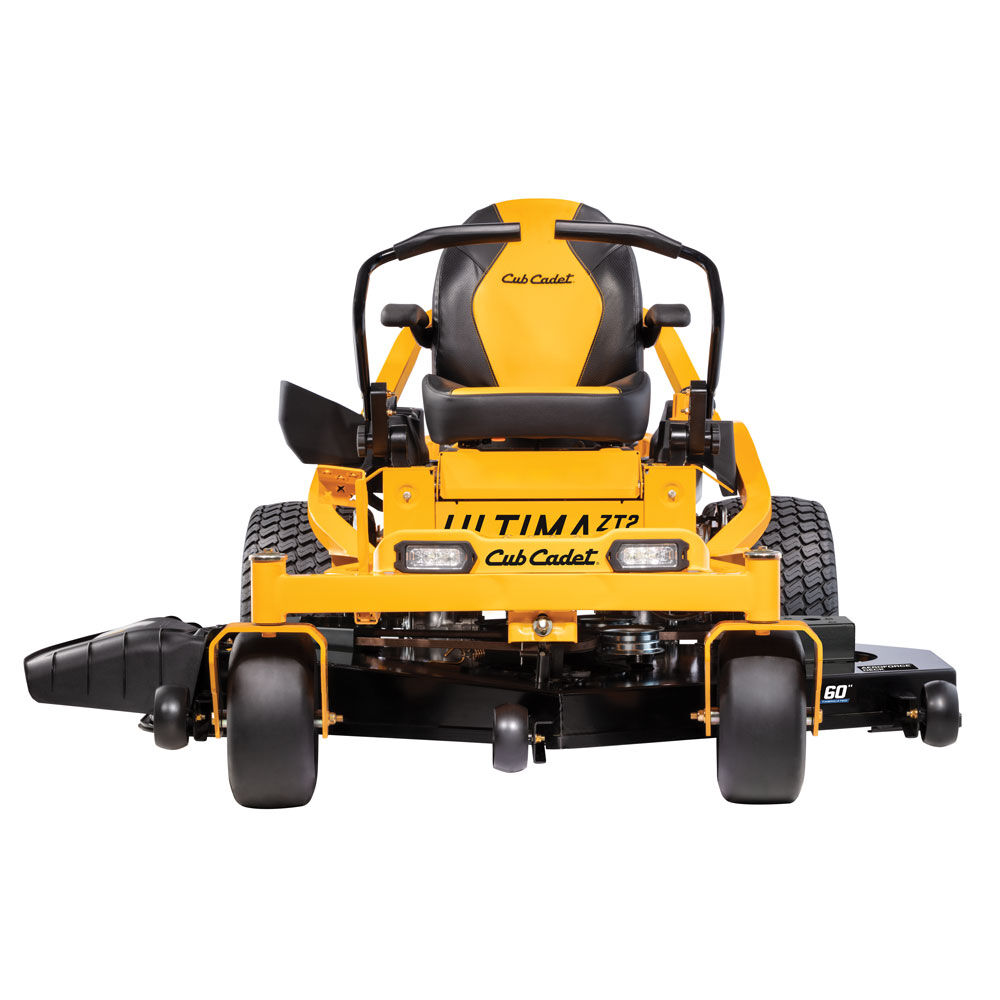

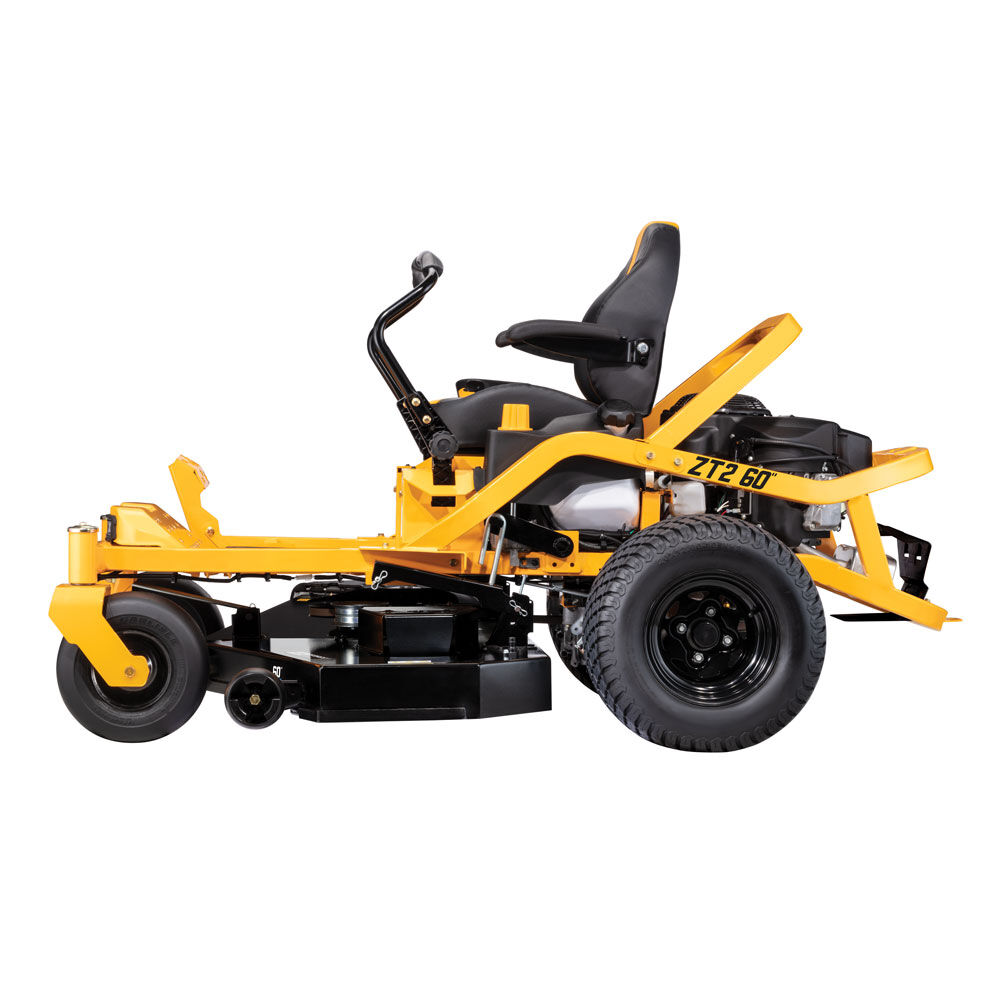

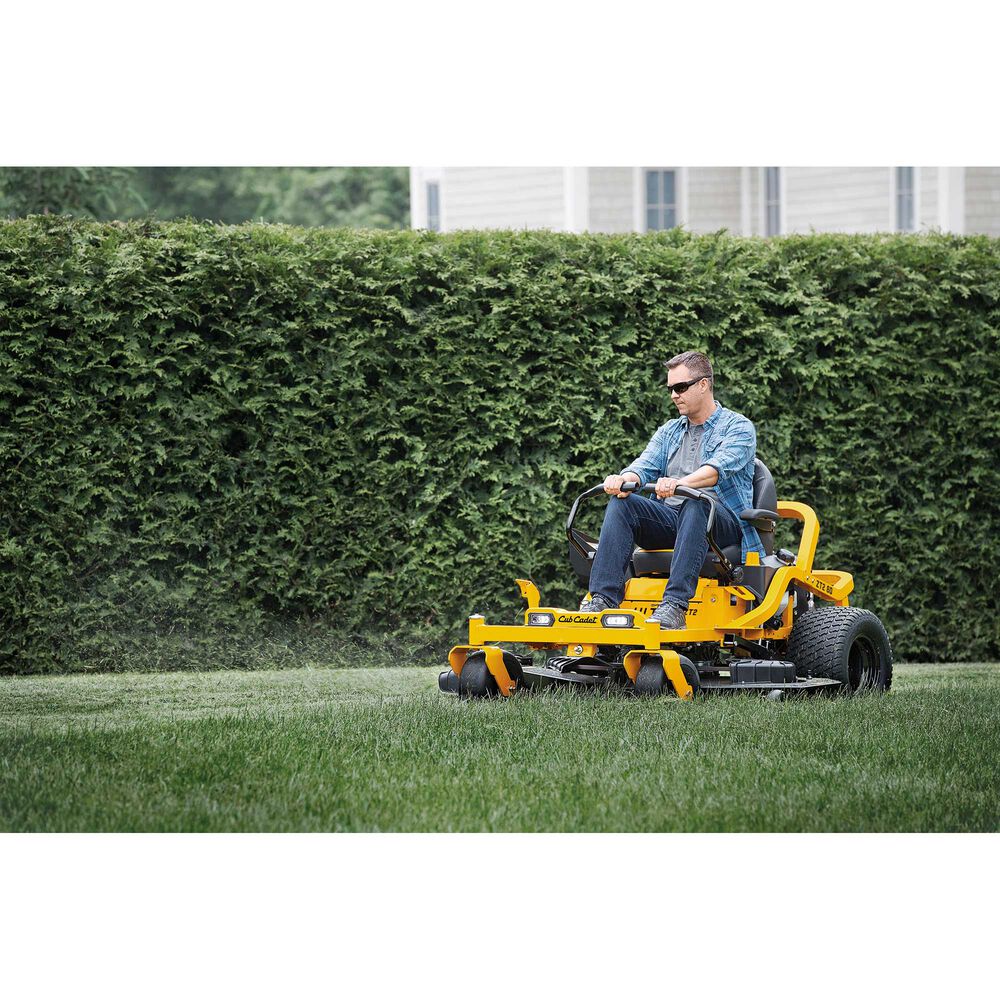

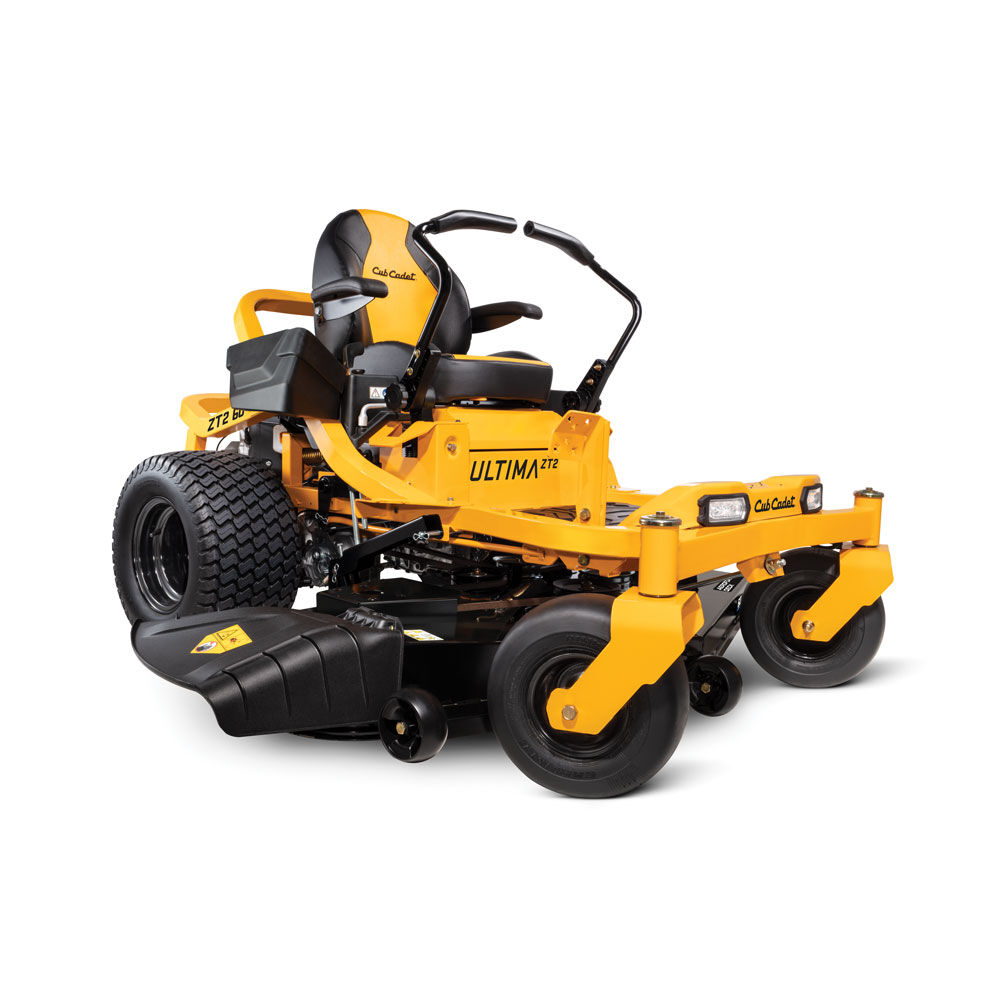

Cub Cadet Ultima ZT 2 60

Cub Cadet Ultima ZT2 60 Zero-Turn Mower with Lap Bar Control

Built to handle your yard’s toughest demands, the Ultima ZT2 60 delivers high-performance power, precision cutting, and effortless maintenance — ideal for mowing rolling hills and navigating obstacles on properties up to 5 acres.

Key Features:

• 25 HP / 725cc Kohler® 7000 Series PRO V-Twin OHV Engine – High-performance power with exceptionally smooth, quiet operation
• Dual Hydrostatic Transmissions – Quick, effortless ground speeds up to 7.5 MPH forward (3.5 MPH reverse) for a professional-quality finish
• 60-in. AeroForce Fabricated Triple-Blade Deck – Heavy-duty 11-gauge, high-lift design with reinforced leading edges for fewer clumps, finer clippings, and increased evenness
• Ideal for Up to 5 Acres – Handles slight rolling hills and multiple obstacles with ease
• Easy Maintenance Access – Open frame design with hinged/removable floor pan for quick access to deck and engine

Full Specifications:

Engine

• Brand/Model: Kohler® 7000 Series PRO, KT740
• Displacement: 725cc, Twin cylinder
• Output: 25 HP
• Air Filter: Dual element
• Choke: Separate choke
• Fuel Delivery: Carburetor
• Fuel Tank: 3.5 gal. US (13.25 L)
• Oil Capacity: 2.0 qt. US (1.89 L)
• Charging System: 12 amp regulated
• Governor: Mechanical
• Lubrication: Fully pressurized, with oil filter
• Starter: Electric, Ignition Key start

Cutting Deck

• Width: 60 in., 11-gauge steel, Fabricated construction
• Blades: 3, high-lift
• Cutting Height Range: 1″ – 4.5″ (15 positions)
• Deck Lift: Foot pedal with dial adjust
• PTO Engagement: Electric
• Anti-Scalping: 3 gauge wheels

Drive System

• Type: Hydrostatic (Tuff Torq® TZ350)
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Turning Radius: 0°

Comfort & Controls

• Seat: 20″ high-back, lever adjustable
• Armrests: Yes
• Steering: Lap bars
• Brakes: Disc
• Parking Brake: Lap bar integrated
• Cup Holder: Yes
• Headlights: Dual-LED

Battery

• 12V AGM, 210 CCA

Chassis & Tires

• Frame: 2″ x 2″ tubular steel with corrosion protection
• Front Tires: 13″ x 6.5″-6″
• Rear Tires: 20″ x 12″-8″
• Tire Tread: Turf Master / Multi Trac
• Rear Tow Hitch: Yes

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Operator Presence System: Yes

Model Number: 17ASEAC5A10 Series: Ultima Series™ ZT
