Cub Cadet Ultima ZTS 1 50

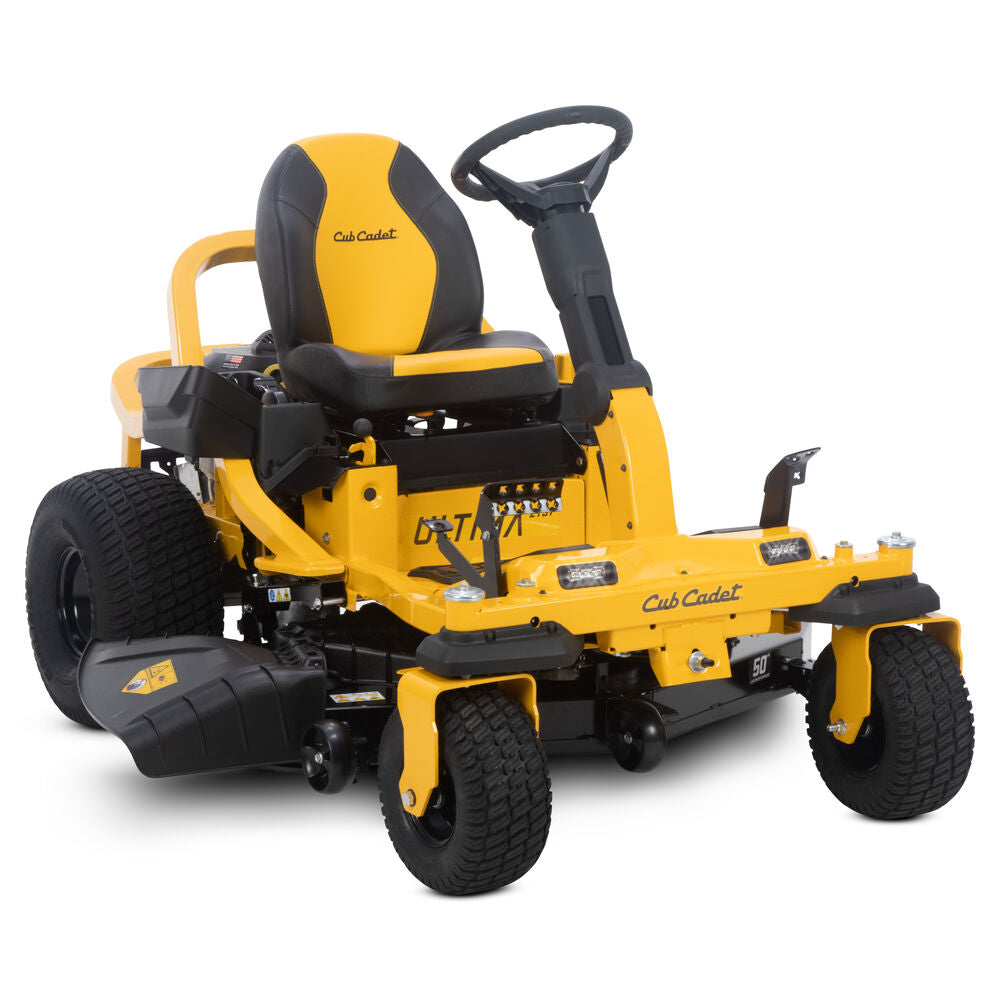

Cub Cadet Ultima Series ZTS50 Zero-Turn Mower with Synchro-Steer™

The Ultima ZTS50 combines the familiar ease of steering-wheel control with the speed and precision of a true zero-turn mower — delivering elite handling, confident stability, and a professional-quality cut every time.

Key Features:

• Synchro-Steer™ Technology – 4-wheel control provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20 degrees
• 23 HP / 725cc Kohler 7000 Series V-Twin OHV Engine – High-performance power with exceptionally smooth, quiet operation
• Dual Hydrostatic Transmissions – Quick, effortless ground speeds up to 7 MPH forward (3.5 MPH reverse) for a fast, professional-quality finish
• 50-in. AeroForce Fabricated Deck – Signature cut with fewer clumps and stragglers, finer clippings, and increased evenness
• Zero-Turns, Zero Learning Curve – One-hand steering-wheel operation makes it easy to control, even for first-time zero-turn users

Full Specifications:

Engine

• Brand/Model: Kohler® 7000 Series, KT725
• Displacement: 725cc, Twin cylinder
• Output: 23 HP
• Air Filter: Dual element
• Choke: Choke-a-Matic
• Fuel Delivery: Carburetor
• Fuel Tank: 3.5 gal. US (13.25 L)
• Oil Capacity: 2.0 qt. US (1.89 L)
• Charging System: 12 amp regulated
• Governor: Mechanical
• Lubrication: Fully pressurized, with oil filter
• Starter: Electric, Ignition Key start

Cutting Deck

• Width: 50 in., 11-gauge steel, Fabricated construction
• Blades: 3
• Cutting Height Range: 1″ – 4.5″ (15 deck positions)
• Deck Lift: Foot pedal with dial adjust
• PTO Engagement: Electric
• Anti-Scalping: 3-gauge wheels

Drive System

• Type: Hydrostatic (Hydro-Gear EZT 2200)
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Turning Radius: 0°

Comfort & Controls

• Seat: 20″ high-back, lever adjustable
• Steering: Steering wheel with Synchro-Steer
• Brakes: Disc
• Parking Brake: Foot operated
• Cup Holder: Yes
• Headlights: Dual-LED

Battery

• 12V AGM, 210 CCA

Chassis & Tires

• Frame: 2″ x 2″ tubular steel with corrosion protection
• Front Tires: 13″ x 6.5″-6″
• Rear Tires: 20″ x 10″-8″
• Tire Tread: Turf Master / Multi Trac
• Rear Tow Hitch: Yes

Warranty

• 3-Year Unlimited Hours
• Lifetime Limited on Deck Shell and Frame

Model Number: 17ARGBYLA10
